Ansys SCADE Test

Test, Verify and Validate Embedded Software

Ansys SCADE Test is a complete embedded software testing environment for requirements validation along with test-case creation and management.

Overview

A COMPLETE TESTING ENVIRONMENT An Integrated Solution to Reduce Embedded Code Testing Costs

Ansys SCADE Test is a complete testing environment for requirements validation, as well as test case creation and management. You can automate test case execution both on host and on target, measure coverage and manage test results for any SCADE application.

Ansys SCADE Test for verification and validation (V&V) activities benefit from best-in-class technology in both a model-based approach and a cost-effective testing environment, allowing them to significantly reduce testing efforts.

Features

Quick Specs

Ansys SCADE Test is proven to reduce embedded software verification activities time and costs and achieve reliable software.

Still have a question?

Best-in-Class Technology

Proven Cost Reduction

Test Case Automation

Complete Testing Environment

Model Coverage Analysis

Automated Test Harness Generation

Capabilities

Ansys SCADE Test Allows You to Test Early, Reducing Late-Stage Design Work

With SCADE Test, you can get an early start on requirements validation and automate testing to ensure compliance from the early development stages and reduce costly late-stage design changes. The complete interactive testing environment easily enables prototyping and validation via graphical widgets; model test execution, reporting of model coverage results and test translation for hardware targets are automated. Test report generation is qualified according to Safety standards (DO-178C, ISO 26262, EN 50128, IEC 61508).

Capabilities

Key Features

Everything you need to get an early start on requirements validation

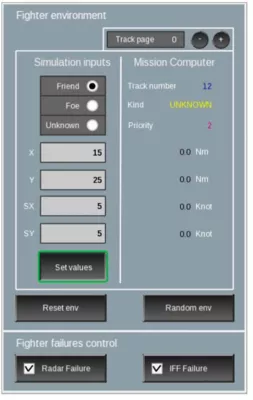

Requirements Validation

Ansys SCADE Test Rapid Prototyper enables you to create predefined widgets (buttons, sliders, etc.) for interactive panels to test your applications. It empowers model simulation through integration with other Ansys simulation products as well as third-party solutions.

A key aspect of SCADE Test’s solution is full integration with the SCADE family of products. Validate your requirements early with a suite of features that include a library of pre-defined widgets, next-generation HMI concepts, interactive graphical panels for debug and simulation sessions, full integration with SCADE Suite model-based development environment, and automatic generation of executable applications for most common platforms

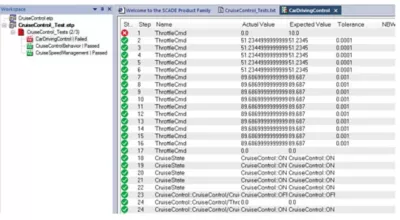

Testing Control Software Applications and Graphical User Interfaces on Host

SCADE Test Environment for Host is an interactive and batch user interface for control software and graphical user interface applications developed using SCADE Suite and SCADE Display.

SCADE Test Environment for Host provides you with an interactive interface that you can use to manage test data, set up and test execution and obtain detailed test reports. Test reports are easily viewed, analyzed and managed through the application’s interactive analysis tools which offer powerful checking ability of expected results. The SCADE Test Execution Engine is a qualified development tool under DO-178C/DO-330 TQL-5, ISO 26262 TCL3, EN 50128 T2 and IEC 61508 T2 standards, so you’ll never have to worry about the correct execution of model-based tests on host.This enables diverse teams — working to meet functional safety and SOTIF standards across embedded software, electronics, perception and other areas — to collaborate easily and more seamlessly.

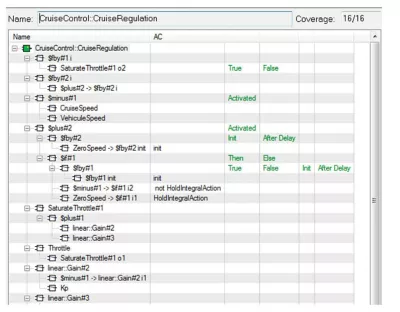

Model and Code Coverage Analysis

SCADE Test Model Coverage extends the development of SCADE Suite or SCADE Display applications with the coverage measurement of models and generated code, relying on a high-level, requirements-based test suite.

SCADE Test Model Coverage, combined with SCADE Test Environment for Host, allows you to measure the model coverage of test cases created and executed on host. Even better, model and code coverage are merged into a single activity, cutting the required time and effort in half. Model-level coverage measures branch coverage, decision coverage and modified condition/decision coverage within a qualified development tool, according to DO-178C/DO-330 TQL-4, ISO 26262 TCL3, EN 50128 T2 and IEC 61508 T2.

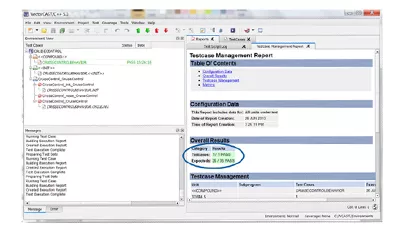

Test Execution on Target

SCADE Test Target Execution automates the generation of a target test harness for commercial off-the-shelf (COTS) tools.

With SCADE Test Target Execution, you’ll be able to automate the generation of target harnesses for big-name third-party products like IBM Rational® Test RealTime, LDRA TestBed® for SCADE Suite and Vector Software VectorCAST™ for SCADE Suite. You can also enjoy support for applications developed with SCADE Suite or SCADE Display. Automatically translate model test cases into customizable harnesses that can be integrated into any in-house or commercial infrastructure. Like the rest of SCADE Test, the Test Harness Generator is a qualified development tool under several diverse standards.

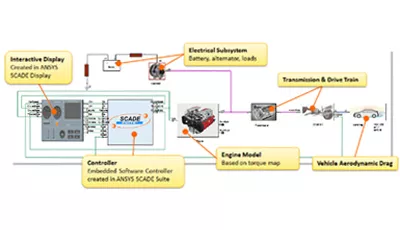

System-in-the-Loop Testing

SCADE Test Environment for Host provides a Test Services API that enables you to perform software testing in a system-in-the-loop testing environment.

Measure software model coverage while testing the full system with SCADE Test Services API. With the API, you can access functions to reset, load and write coverage results while the test is running. This allows you to fearlessly test a huge variety of scenarios with little to no risk, and greatly reduce time to update or expand test coverage as needed.
