Ansys Motor-CAD
Electric Machine
Design Software

Ansys Motor-CAD is a dedicated electric machine design tool for fast multiphysics simulation across the full torque-speed operating range.

Overview

Fast Multiphysics Simulation Across a Full Torque-speed Operating Range

Motor-CAD enables design engineers to evaluate motor topologies and concepts across the full operating range, to produce designs that are optimized for performance, efficiency and size. Motor-CAD software’s four integrated modules—EM, Therm, Lab, Mech—enable multiphysics calculations to be performed quickly and iteratively, so users can get from concept to final design in less time.

Features

Quick Specs

Fast calculations and streamlined data input processes leave time for Motor-CAD users to explore more motor topologies and fully assess the impact of advanced loss effects in the initial stages of an electromechanical design.

Still have a question?

Template-based magnetic topologies

Template-based cooling topologies

3D Coupled Thermal-Fluid Network

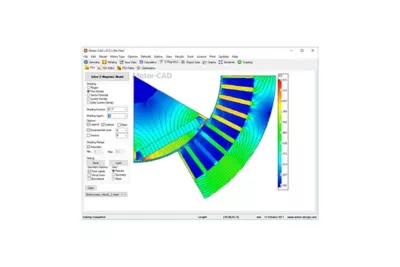

2D FEA coupled with analytical solution

Temperature dependent Duty-Cycle

Linear structural 2D FEA

DXF and scriptable geometries

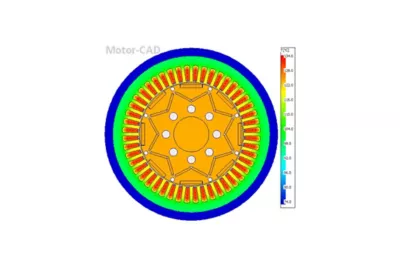

Steady-state and transient thermal

CFD, FEA and empirical correlations

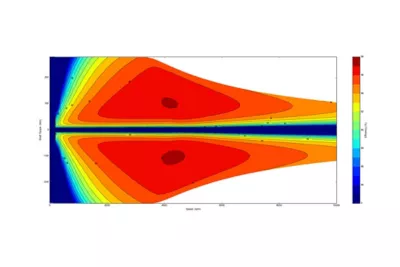

Efficiency and loss maps calculations

Capabilities

Integrated Multiphysics Analysis Software for Electric Motor Design

With decreasing development cycles, motor designers need to make design decisions quickly, and with certainty that they will not face problems down the line. Fast calculations and streamlined data input processes leave time for Motor-CAD users to explore more motor topologies and fully assess the impact of advanced loss effects in the initial stages of a design. Motor-CAD software’s intuitive, template-based setup and embedded multiphysics expertise simplifies the design process and reduces reliance on multiple teams for specific electromagnetic, thermal or mechanical experience — so motor designers can keep more control over their designs.

Capabilities

Structures
Capabilities

Easily handle the complexity of varied design environments with a range of analytical tools that enable you to meet performance goals and ensure long-term reliability.

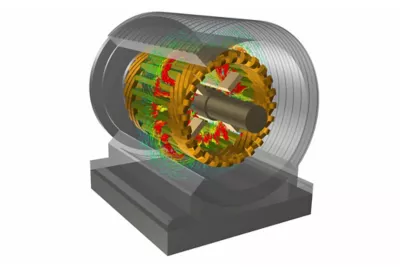

Integrates with Ansys Maxwell and other physics solvers

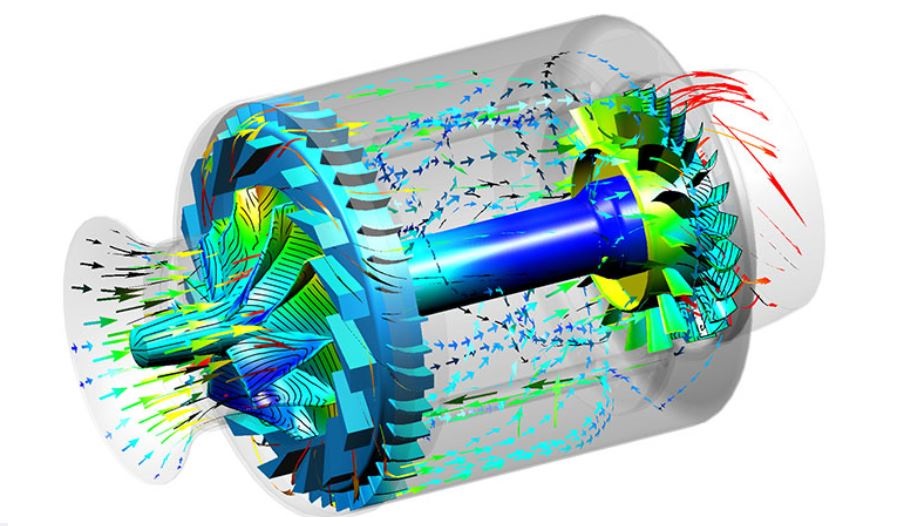

Ansys Motor-CAD connects to Ansys Maxwell for advanced 2D and 3D electromagnetics analysis. For electric machine noise and vibration and (psycho-acoustic) sound prediction, Ansys Motor-CAD integrates with Mechanical and VRXPERIENCE. It also connects with Ansys CFD solvers and leverages air, water and oil based cooling techniques for cooling system design and analysis, as well as provides feedback into the Motor-CAD’s thermal model.

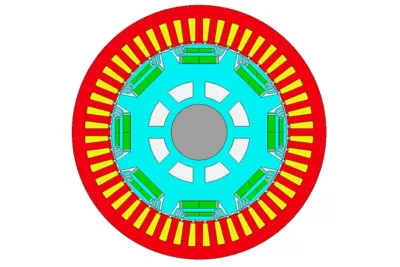

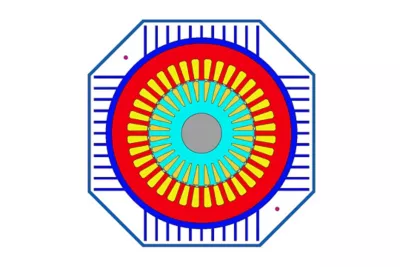

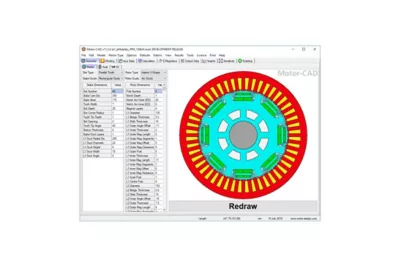

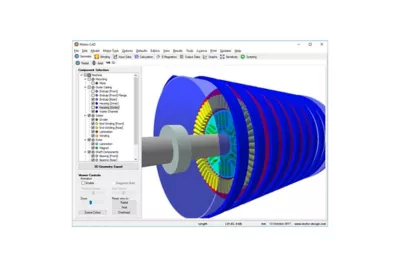

Template-Based Electromagnetic and Thermal Design

Comprehensive and powerful geometry templates enable the complete electric machine design space to be explored. Templates cover a huge range of electric machine technologies, topologies and cooling systems. Ratio based parameterization options are a new addition which provide unprecedented capabilities for parametric design optimization.

Electromagnetic-Thermal-Control coupling simulation

Coupled multi-physics analysis from the start of the design process and in-built control algorithms enables virtual testing considering temperature effects over transient drive cycles or at steady state.

Design for Field Weakening

Design of modern electric machines requires performance analysis over the full torque/speed operating range. Motor-CAD enables designers to easily and quickly analyze the performance of their designs over the operating envelope, including field weakening behavior.

Temperature Dependent Continuous-Torque and Peak-Torque Simulation

Rapidly evaluate designs against the complete multi-physics performance requirements such as peak and continuous torque/speed characteristics.

Manufacturing effects and housing interface

Any electric machine simulation requires understanding of the manufacturing effects and the impact of variation in the manufacturing process on performance. Motor-CAD has built in knowledge to guide engineers in configuring the manufacturing effects appropriately and enables straightforward sensitivity analysis to understand the impact of manufacturing variation on performance.

Ratio-based optimization

Motor-CAD is the ideal tool to use for optimization of electric machine designs. Powerful ratio-based optimization enables the design space to be explored easily while the coupled multi-physics analysis enables evaluation of each candidate design against the complete performance specification.

Magnetic force analysis

Rotor stress analysis

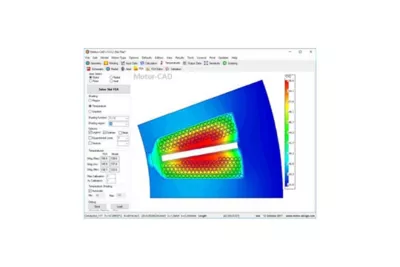

Rapid, automatic FEA based rotor stress analysis enables engineers to easily optimize rotor designs and trade-off between electromagnetic performance and mechanical constraints.
